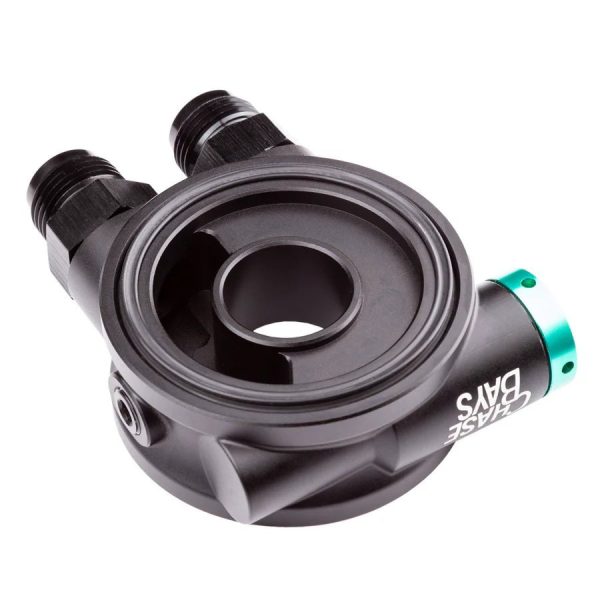

• Innovative self-contained 180ºF thermostatic oil valve
• 10AN ORB Ports
• Very high flow cavities
• Two 1 8 NPT accessory ports (plugs included)
• X Profile Buna O-Ring Seal
• Machined from 6061 Aluminum and bead blasted for smooth finish
• Anodized UV-proof signature Chase Bays Semi-Gloss black with logo laser etched in the side

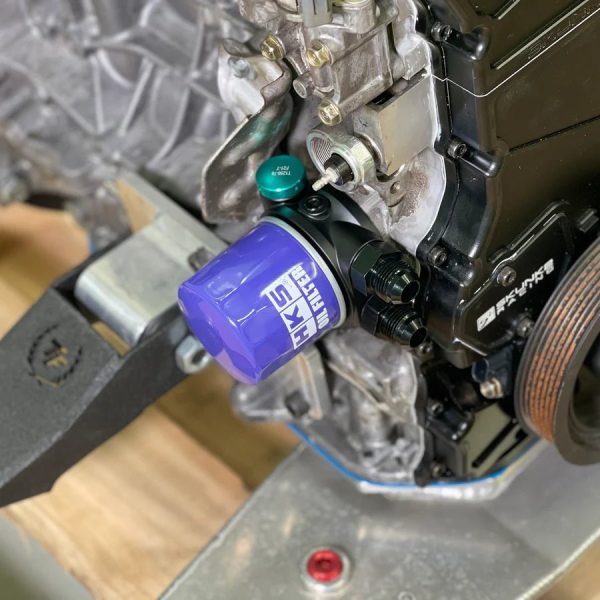

The built-in thermostatic oil valve allows vehicle to warm up to operating temperature before sending oil through to an oil cooler. Without this the vehicle can take 20+ minutes to warm up and that s bad for the engine. Oil Sandwich adapters install between oil filter and oil filter landing for easy install of an oil cooler.

APPLICATIONS

Honda B, D, H, F, K, J Series – M20x1.5

Mazda Miata NA, NB BP – M20x1.5

Mazda Miata NC – 3 4-16

Nissan S13 SR20DET – 3 4-16

Nissan S14 SR20DET – M20x1.5

Nissan KA, CA, and RB – 3 4-16

Nissan VQ – M20x1.5

Subaru Impreza EJ – M20x1.5

Subaru FR-S BRZ 86 FA20 – M20x1.5

Toyota 1JZ-GTE, 2JZ-GTE, and 2JZ-GE – 3 4-16

Toyota BEAMS – 3 4-16

and hundreds more. If your chassis isn t listed, search your chassis and oil filter thread size to find out.

Oil Filter Sealing Surface Minimum ID: 54mm
Oil Filter Sealing Surface Maximum OD: 74mm

INSTALL

TORQUE SPECS: 23 ft lbs

There is no IN and OUT for the 10AN Adapters…it is pressurized in one direction so it will flow based off pressure. It does not matter which end goes to the cooler or which side of the cooler, it will push itself through in the only direction it flows.
