Description

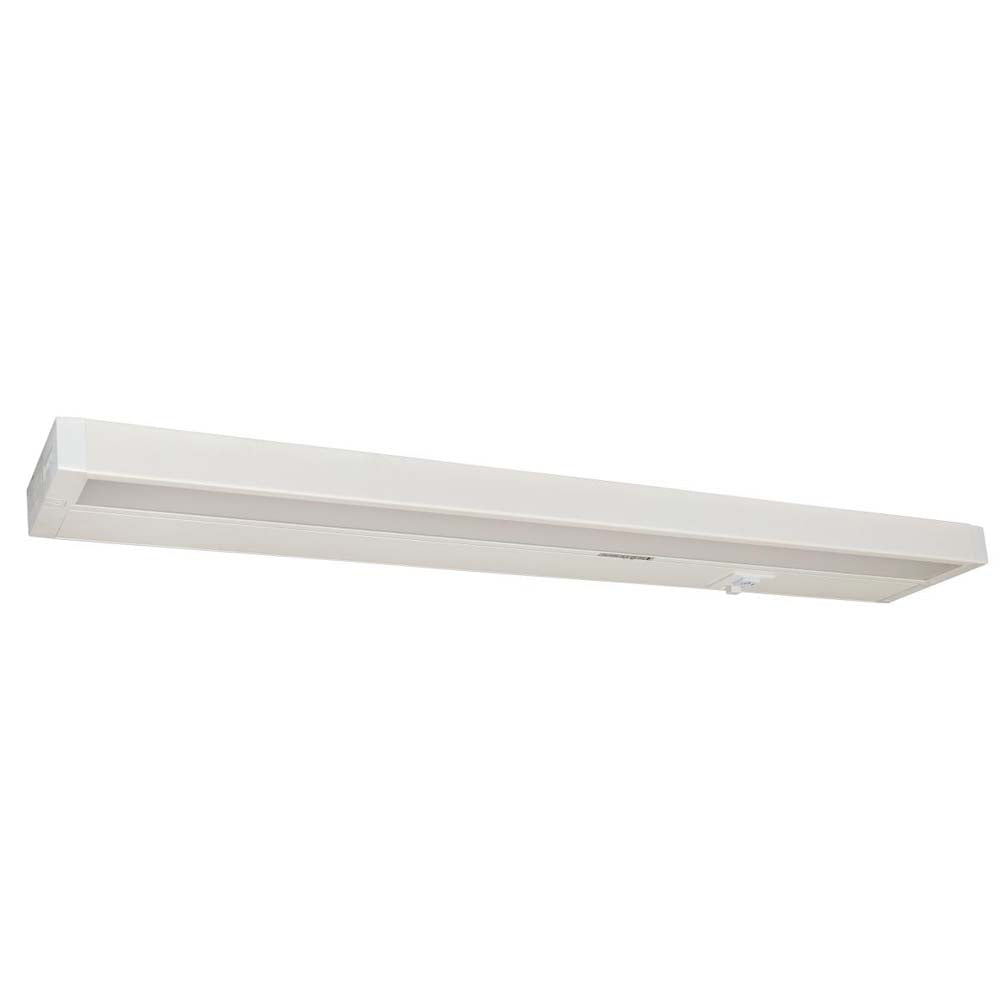

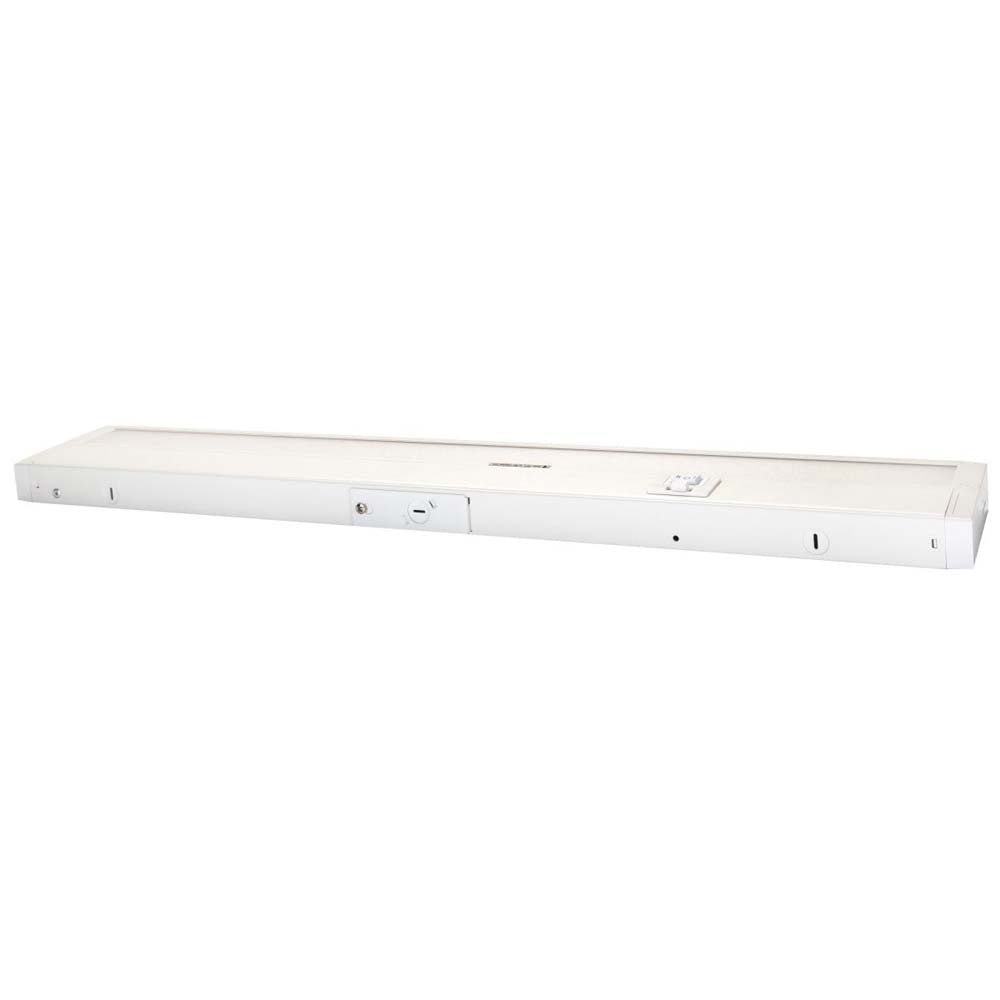

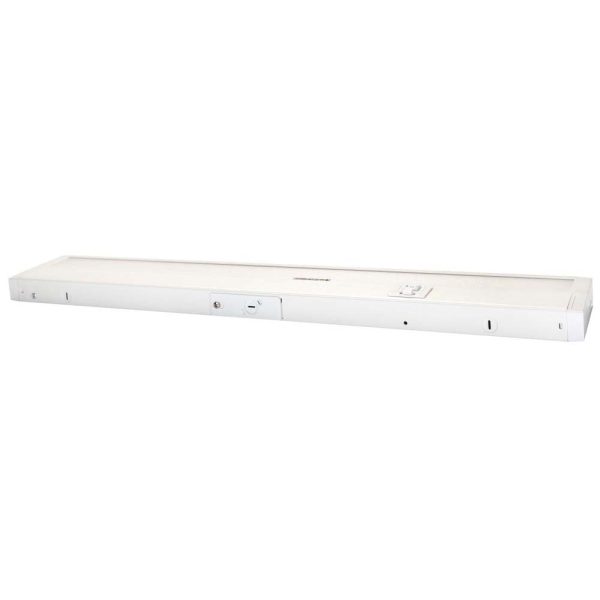

Nuvo Under Cabinet LED Fixtures are The Faster, Better, Quality Solution. This line of fixtures was designed to help speed up installation for contractors while providing a high quality and robust design! With 5 different sizes, 3 different ways to wire, 2 different ways to mount, and a CCT Select Switch for 3000K 4000K 5000K, this is a versatile solution to meet a variety of different applications. You can link multiple units together with end end connectors, or use link cables of various lengths to reduce time and ensure you have the perfect installation.

Additional Features include:
– Easily link multiple fixtures together

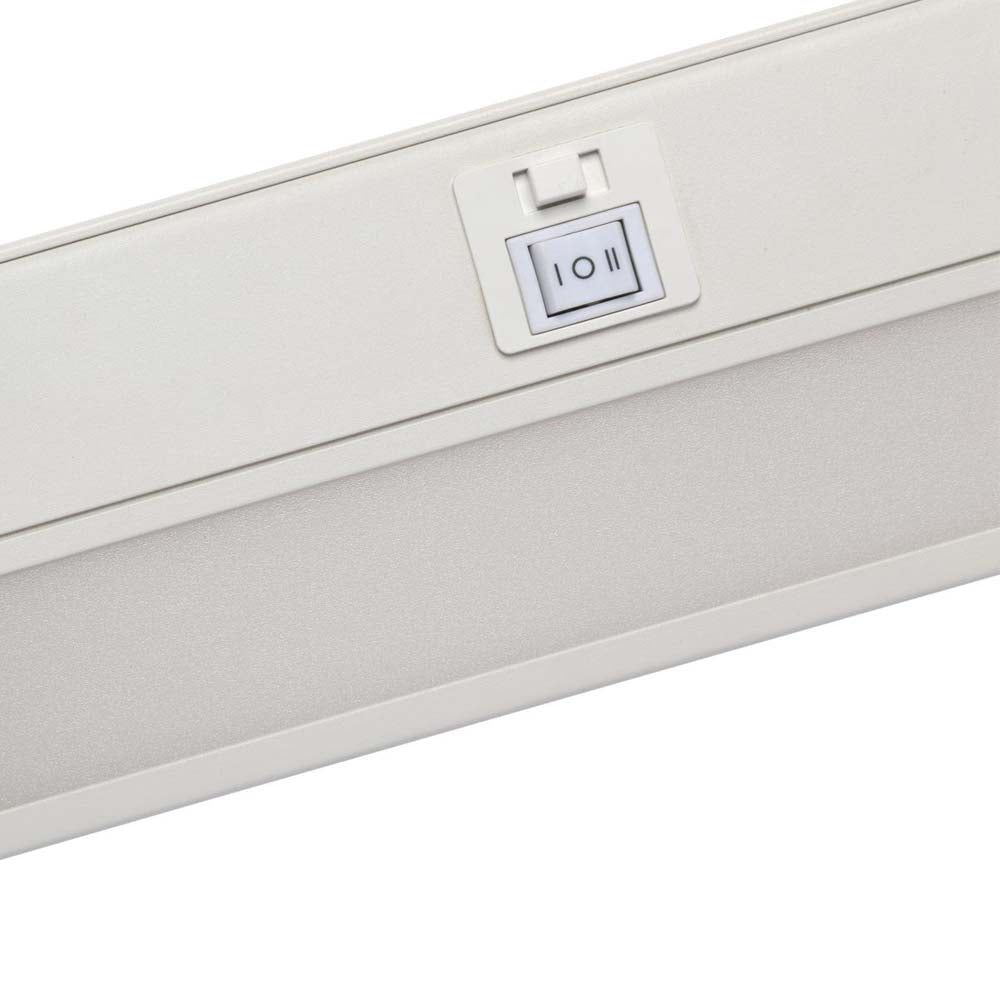

– Selectable CCT (3000K 4000K 5000K)
– 3 Wiring Options: Direct Wire, Junction Box and Plug-In
– 2 Mounting Options: Integrated Screws and Keyhole
– Energy Star & California Compliant
– 5 Year Warranty

Specs

General
Finish		White
Wattage		13w
CCT (Kelvin)		3000K 4000K 5000K
Color Temperature		CCT Selectable
Length (in.)		22
Width (in.)		3.5
Height (in.)		1
Indoor or Outdoor Fixture		Indoor
Specifications
Technology		LED
CRI		90+
Lumen Output		859L-955L
Rated Hours		40,000 hrs
Voltage		120v
Dimmable		Yes-Dimmable
Weight (lb.)		1.28
Sloped Ceiling		No
Fixture Shape		Rectangle
Fixture Material		Aluminum Polycarbonate (PC
Fixture Type		Under Cabinet
Max. Connectable Units		36
Operating Temperature		-20C (-4F) to a maximum of +40C (+104F)
Compliance
Safety Listing		cETLus
Location Rating		Dry
Energy Star		Yes
California Status		California T24 Listed
California Prop 65		Lead
RoHS Compliant		Yes
FCC Compliant		Yes
Additional Information
Warranty		5 Year Limited

Additional Info

Manual:

63-503 Data Sheet
